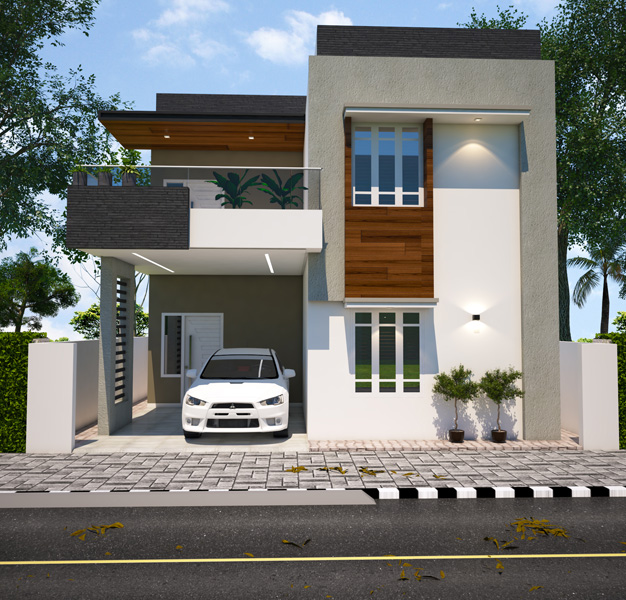

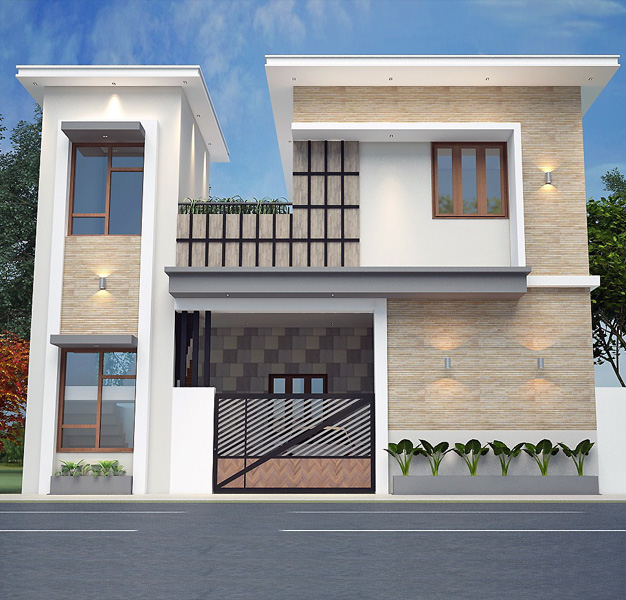

3D

Ashia Estates

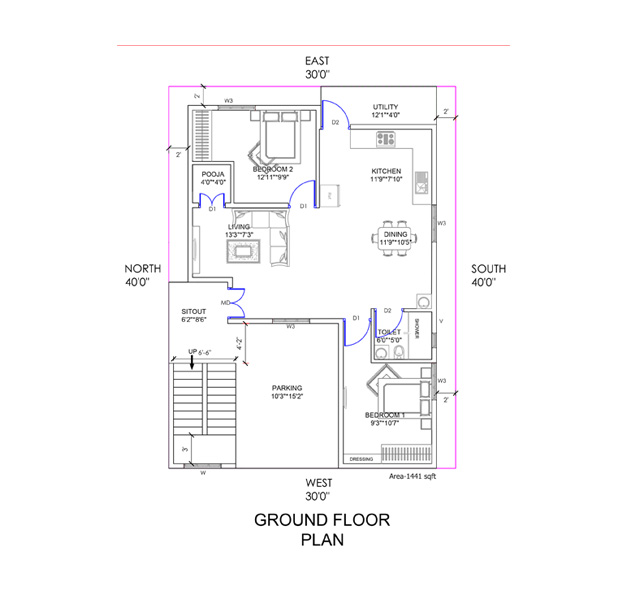

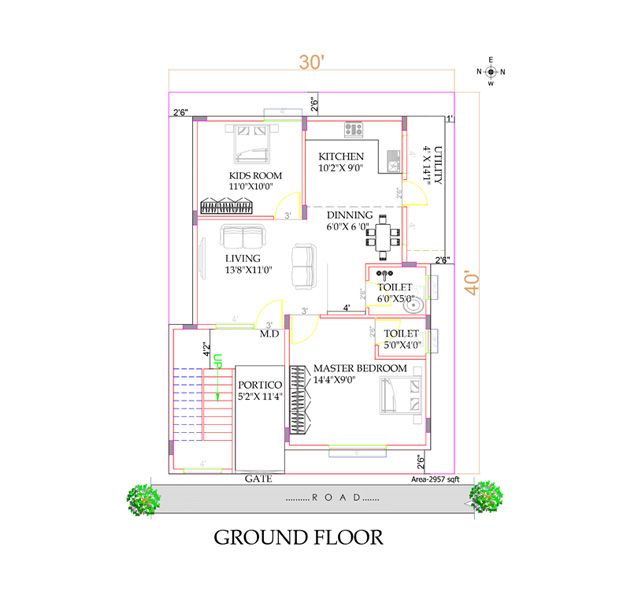

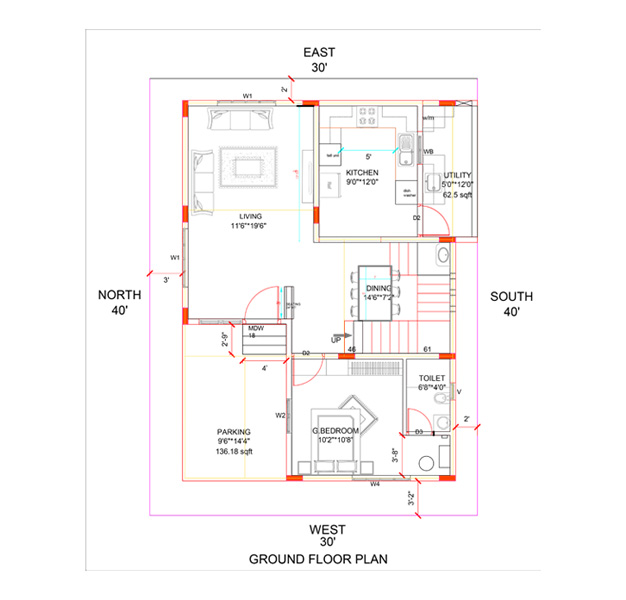

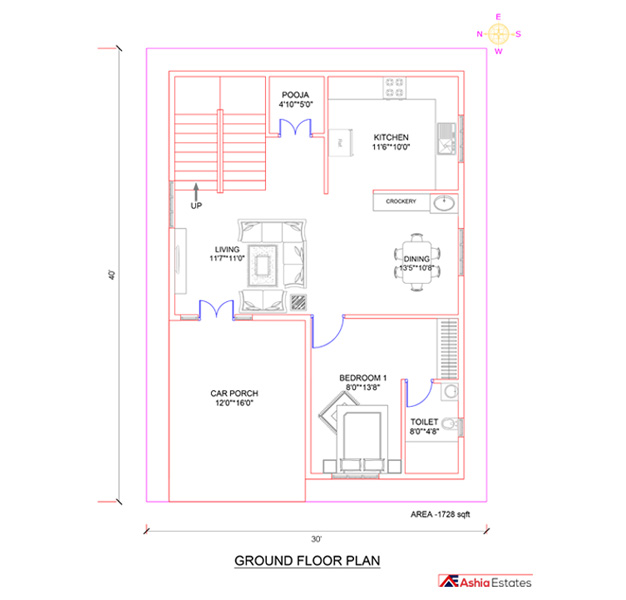

Ground Floor Plan

Ashia Estates

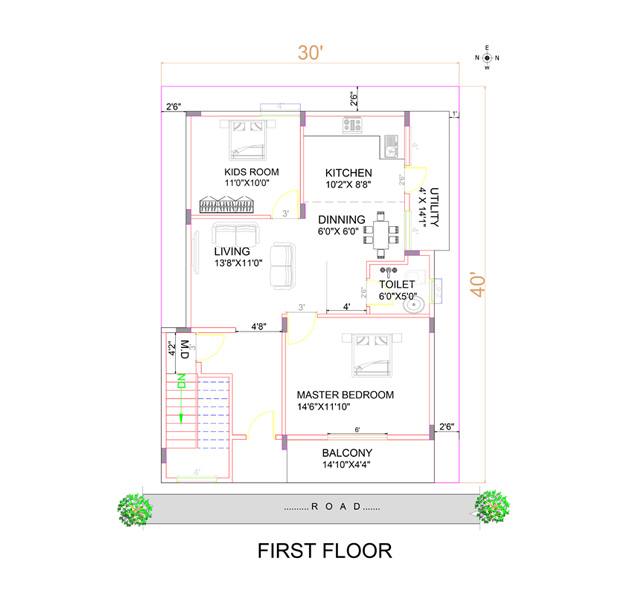

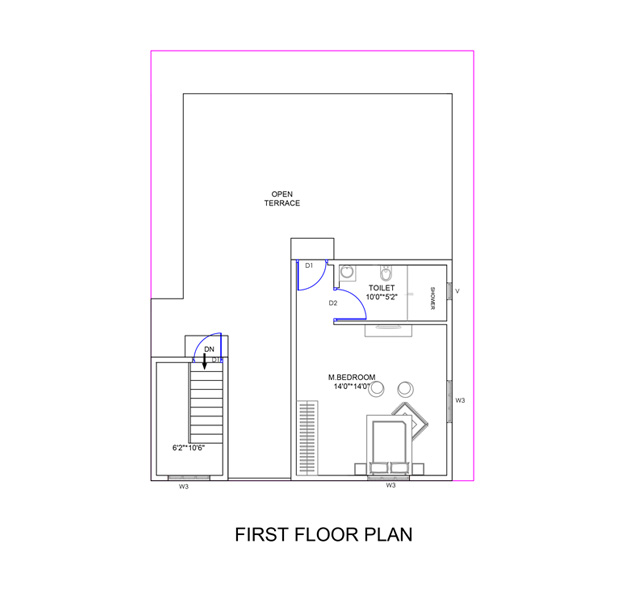

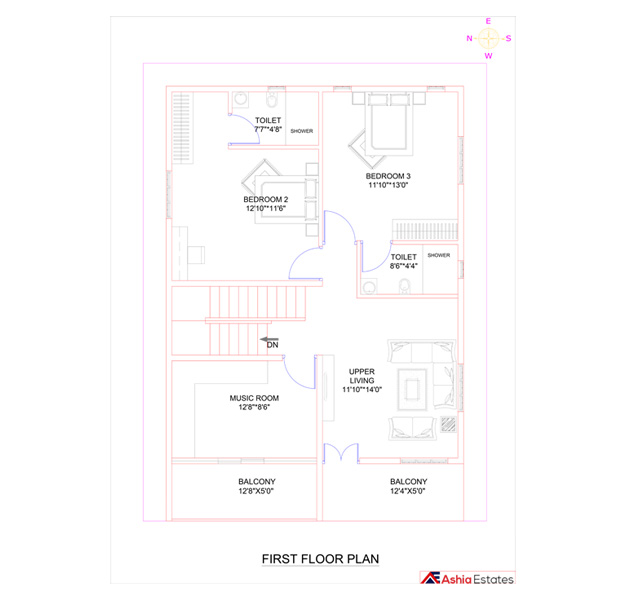

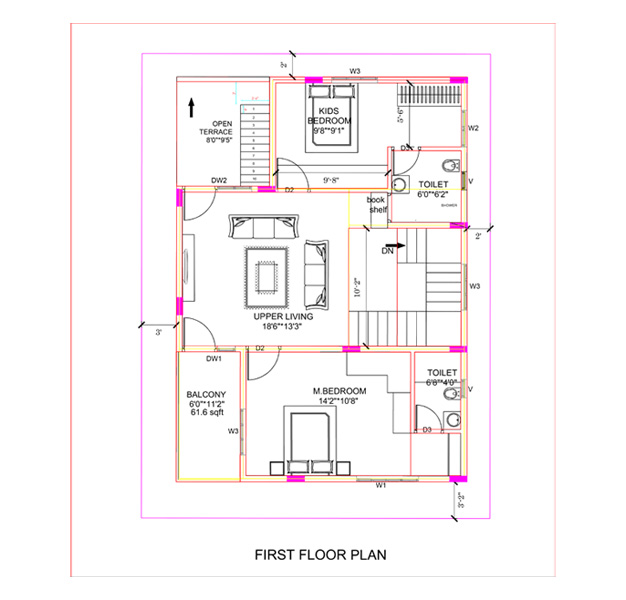

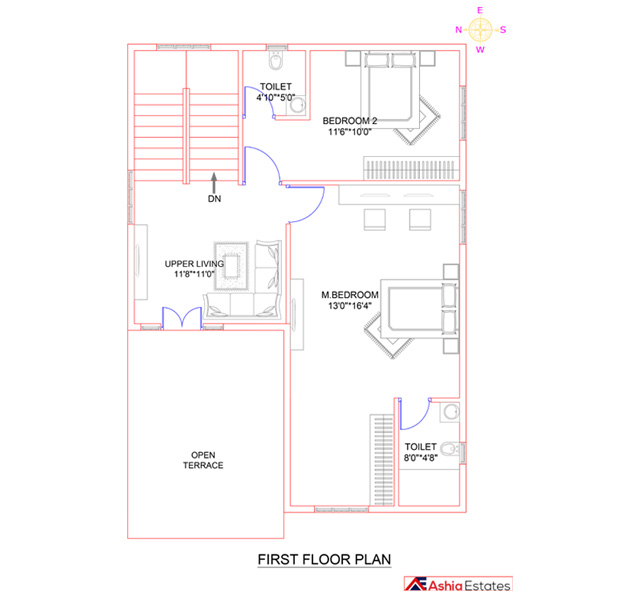

First Floor Plan

Ashia Estates

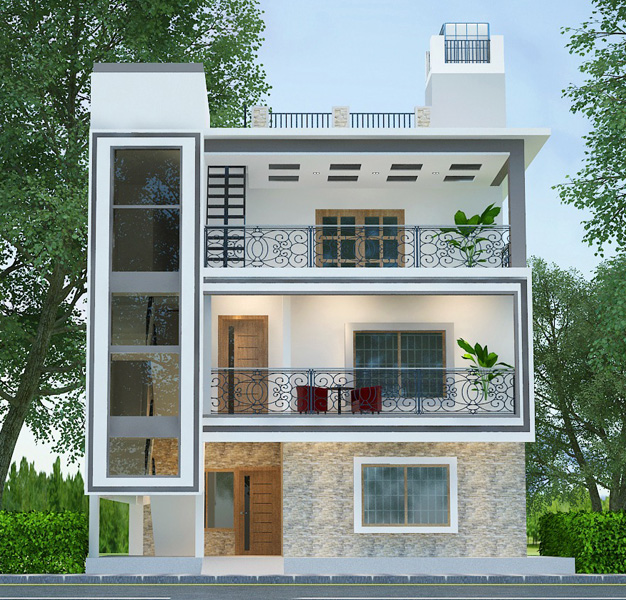

3D

Ashia Estates


LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction

Architecture
Building
Garden
Interior

LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction


LUXURY BUILDINGS

Construction

  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Main Door Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth
₹ 30,000.
Teak Wood door with frame of 5inch by 3 inch,with Bronze Tower bolts, handles and lockalong. Door Thickness around 38mm worth
₹ 35,000
Teak Wood door with frame of 5inch by 3 inch,with Bronze Tower bolts, handles and lock . Door Thickness around 38mm along with Teak frame worth
₹ 40,000.
Puja / Prayer Room Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth
₹ 25,000.
Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth
₹ 25,000.
Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth
₹ 25,000.
Other Doors Membrane doors/ Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch Membrane doors / Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch Membrane doors / Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch
Bathroom Doors Waterproof flush doors Waterproof flush doors Waterproof flush doors
Windows Aluminium / Neam wood Window frame with glass shutters ,mesh shutters and MS Grills with Enamel Paint Red Sal/UPVC shutter windows with red Sal/ UPVC frames and MS Grills with Enamel Paint Honne/UPVC shutter windows with Honne/ UPVC frames and MS Grills with Enamel Paint
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Interior Painting JK Putty + Tractor Emulsion JK Putty + Apcolite Premium Emulsion Interior Painting- - JK Putty + Apcolite Premium Emulsion
Exterior Painting Asian Primer + Ace Exterior Emuslion Paint Asian Primer + Apex Exterior Emulsion Paint Asian Primer + Apex Exterior Emulsion Paint
kajaria
Doors and Windows
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Washrooms Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete Fosrok chemical with plastering
Terrace Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete
      12mm jelly waterproof concreting with fosrok chemical
sintex
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Steel Meenakshi Gold, Indus, Sunvik TMT Steel Meenakshi Gold, Indus, Sunvik TMT Steel JSW, TATA, Sunvik TMT Steel
Cement ACC, Birla, Ultratech, Ramco OPC of
Grade - 43/53 Or PPC
ACC, Birla, Ultratech, Ramco OPC of
Grade - 43/53 Or PPC
ACC, Birla, Ultratech, Ramco OPC of
Grade - 43/53 Or PPC
Sand M sand for Blockwork and Plastering M sand for Blockwork and Plastering M sand for Blockwork and Plastering
Blocks Exterior Walls 6 inch 6 inch 6 inch
Blocks Interior Walls 4 inch 4 inch 4 inch
Aggregates 20mm & 40mm 20mm & 40mm 20mm & 40mm
RCC Design Mix M25 M25 M25
Ceiling Height 10 feet 10 feet 10 feet
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Washrooms Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete Fosrok chemical with plastering
Terrace Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete Dr.Fixit mixed with Concrete
        12mm jelly waterproof concreting with fosrok chemical
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Interior Painting: JK Putty + Tractor Emulsion JK Putty + Apcolite Premium Emulsion Interior Painting- - JK Putty + Apcolite Premium Emulsion
Exterior Painting Asian Primer + Ace Exterior Emuslion Paint Asian Primer + Apex Exterior Emulsion Paint Asian Primer + Apex Exterior Emulsion Paint
sintex
sintex
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Wires Concealed electric wiring with Fireproof wires by Finolex / Polycab Concealed electric wiring with Fireproof wires by Finolex / Polycab Concealed electric wiring with Fireproof wires by Finolex / Polycab
Switches & Sockets Anchor/ Roma / GM/ Lisa Anchor/ Roma / GM/ Lisa Anchor/ Roma / GM/ Lisa
Conduits ISI certified ISI certified ISI certified
Electrical points As per clients specification will be provided in every room As per clients specification will be provided in every room As per clients specification will be provided in every room
ELCB Legrad /ABB / Anchor Legrad /ABB / Anchor Legrad /ABB / Anchor

Other Bathrooms

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Bathroom Ceramic Wall Tiles with 7 feet height - up to ₹40 per sq ft Ceramic wall tiles up to ₹ 40/sq ft for floor and wall tiles. 2 vertical strips of highlighter tiles of length 2’-0” wide Ceramic wall tiles up to ₹ 40/sq ft for floor and wall tiles. 2 vertical strips of highlighter tiles of length 2’-0” wide
Sanitary ware & CP Fittings from- up to ₹40000 till 1000 sq ft of construction and prorata after Sanitary ware & CP Fittings - up to ₹50000 till 1000 sq ft of construction and prorata after. Company : Jaquar, Hindware, Parryware Sanitary ware & CP Fittings - up to ₹50000 till 1000 sq ft of construction and prorata after. Company : Jaquar, Hindware, Parryware
  ₹ 30,000/- allowance for bathroom fixtures ₹ 30,000/- allowance for bathroom fixtures
sintex
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
CPVC Pipe Astral / Ashirwad Astral / Ashirwad Astral / Ashirwad
PVC Plumbing Pipes Supreme Supreme Supreme
Stair case Railing MS Railing MS Railing SS Railing
Balcony Railing MS Railing MS Railing SS Railing with Glass
Parapet wall 3 feet height 3 feet height 3 feet height
Underground Water Sump 6000 liters 7000 liters 7000 liters
Over head Tank Double Layered
1500 liters
Double Layered
1500 liters
Sintex Double Layered 1500 liters
Design & Drawings 2D Floor Plan
3D Elevation
Structural Design
2D Floor Plan
3D Elevation
Structural Design
2D Floor Plan
3D Elevation
Structural Design
sintex
  ₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Compound wall Compound wall will be charged additional @ ₹ 650/ RFT based on foundation depth specifications
Additional Excavation Excavation beyond the normal foundation depth of 6 ft will be charged extra when encountered with water/loose soil/stone
Rainwater Harvesting Rainwater sump,Percolation pit, Fiter, Pipes , Fittings and instelation charges will be additional
Interior Designing Interior design will be as per agreed upon sizes/ materials as mentioned in the contract
On Site Landscaping, Planter box.
In Building Glass doors and allied accessories (separating dry &wet area).
  Bathtubs & extra fittings in bathroom, Wall cladding, Polycarbonate sheet/Toughen glass, Electrical fixtures & kitchen appliances, Home Automation, Home security systems
&Others Property Taxes, Building permission Approvals, Temporary Electrical Connection, Power and water charges,
sintex

Balcony

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Flooring : Ceramic bathroor floor Tiles of ₹50 per sq ft. Flooring : Ceramic bathroor floor Tiles of ₹60 per sq ft. Flooring : Ceramic bathroor floor Tiles of ₹100 per sq ft.
MS Railing MS Railing SS Railing with Glass
sintex

Terrace

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Parapet wall : 3 feet height. Parapet wall : 3 feet height. Parapet wall : 3 feet height.
sintex

Water

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Sintex Double Layered 1500 lt₹. Sintex Double Layered 1500 lt₹. Sintex Double Layered 1500 lt₹.
Underground Sump - 6000 litres. Underground Sump - 6000 litres. Underground Sump - 7000 litres.
sintex

Painting

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Interior Painting : JK Putty + Tractor Emulsion. Interior Painting : JK Putty + Apcolite Premium Emulsion. Interior Painting : JK Putty + Apcolite Premium Emulsion.
Exterior Painting : Asian Primer + Ace Exterior Emuslion Paint. Exterior Painting : Asian Primer + Apex Exterior Emulsion Paint. Exterior Painting : Asian Primer + Apex Exterior Emulsion Paint.
sintex

Electrical

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab. Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab. Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab.
Switches & Sockets : Anchor Roma / GM. Switches & Sockets :Switches & Sockets - Anchor Roma / GM. Switches & Sockets :Switches & Sockets - Anchor Roma / GM.
ISI certified conduits. ISI certified conduits. ISI certified conduits.
Electrical points as per clients specification will be provided in every room. Electrical points as per clients specification will be provided in every room. Electrical points as per clients specification will be provided in every room.
ELCB to be provided in every floor. ELCB to be provided in every floor. ELCB to be provided in every floor.
Concealed electrical points for AC to be provided in every Bedroom. Concealed electrical points for AC to be provided in every Bedroom. Concealed electrical points for AC to be provided in every Bedroom.
Concealed electrical points for UPS to be provided. Concealed electrical points for UPS to be provided. Concealed electrical points for UPS to be provided.
electrical

Plumbing

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
CPVC Pipe : Astral. CPVC Pipe : Astral/Ashirwad. CPVC Pipe : Astral/Ashirwad.
PVC Plumbing Pipes : Supreme. PVC Plumbing Pipes : Supreme. PVC Plumbing Pipes : Supreme.
sintex

Design & Drawings

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
2D Floor Plan. 2D Floor Plan. 2D Floor Plan.
3D Elevation. 3D Elevation. 3D Elevation.
Structural Design. Structural Design. Structural Design.
sintex

Structure

₹ 1,600 / sq ft ₹ 1,700 / sq ft ₹ 1,750 / sq ft
ISI Marked Fe 500 / 550 TMT Steel. ISI Marked Fe 500 / 550 TMT Steel. ISI Marked Fe 500 / 550 TMT Steel.
Aggregates : 20mm & 40mm. Aggregates : 20mm & 40mm Aggregates : 20mm & 40mm
Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls. Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls. Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls.
Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC. Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC. Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC.
M sand for Blockwork and Plastering. M sand for Blockwork and Plastering. M sand for Blockwork and Plastering.
RCC Design Mix - M25. RCC Design Mix - M25. RCC Design Mix - M25.
WaterproofingAll terrace and all washrooms Dr.Fixit. WaterproofingAll terrace and all washrooms Dr.Fixit. WaterproofingAll terrace and all washrooms Dr.Fixit.
Ceiling Height - 10 feet clear height. Ceiling Height - 10 feet clear height. Ceiling Height - 10 feet clear height.
  Washrooms : Fosrok chemical with plastering. Washrooms : Fosrok chemical with plastering.
  Terrace : 12mm jelly waterproof concreting with fosrok chemical. Terrace : 12mm jelly waterproof concreting with fosrok chemical.
sintex
