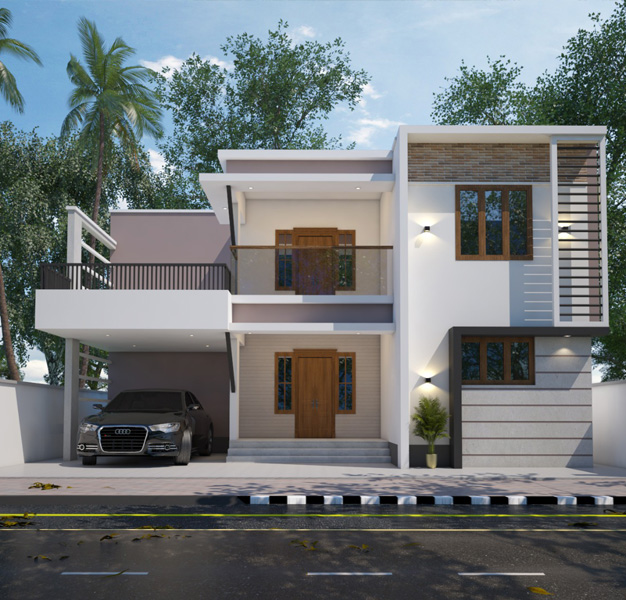

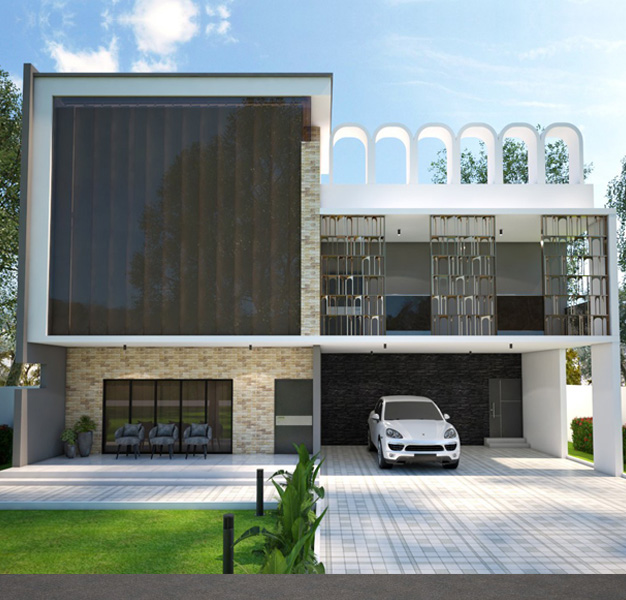

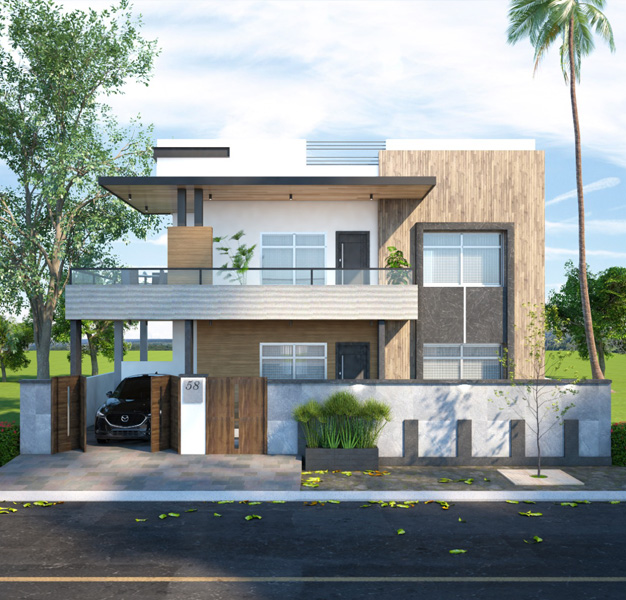

3D
Ashia Estates

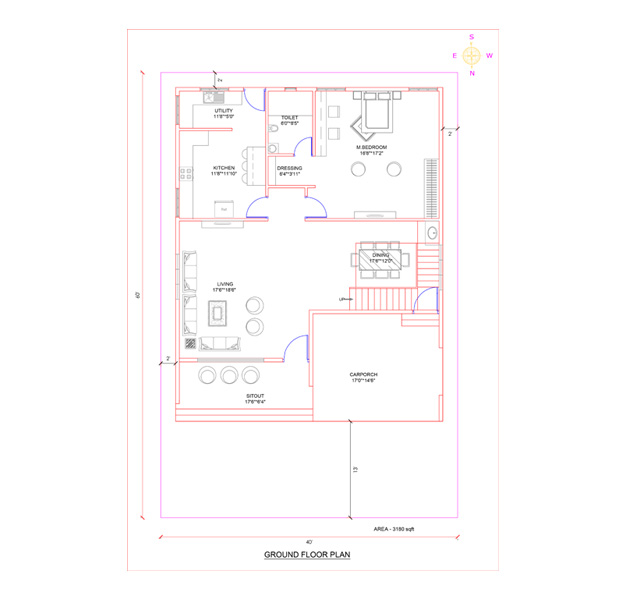

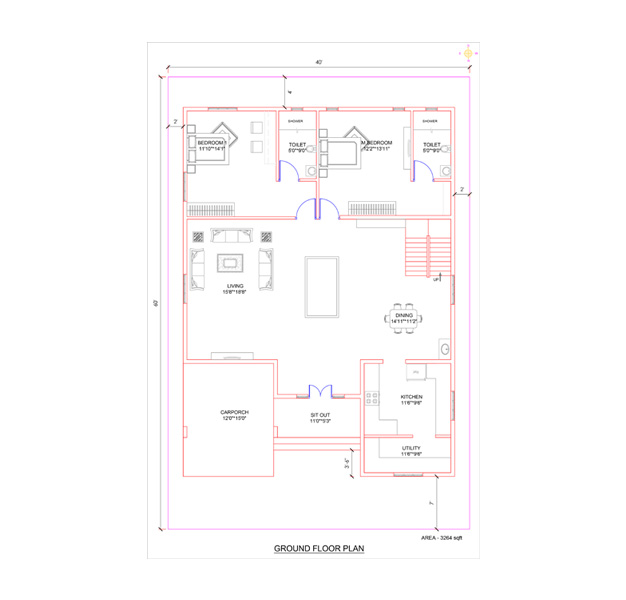

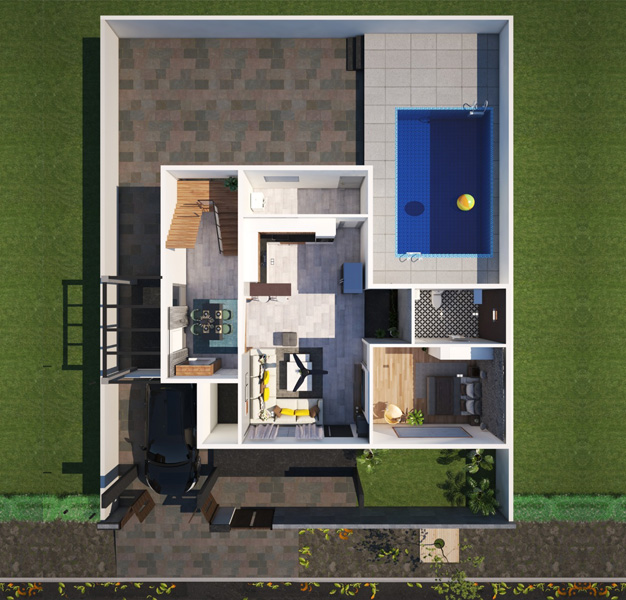

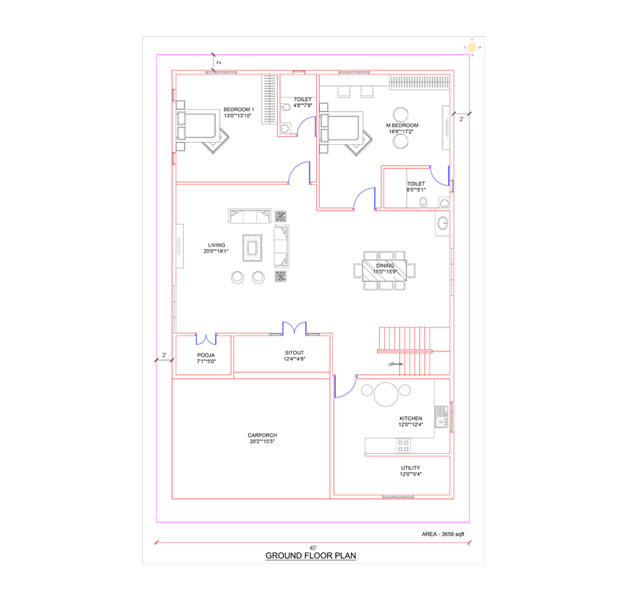

Ground Floor Plan
Ashia Estates

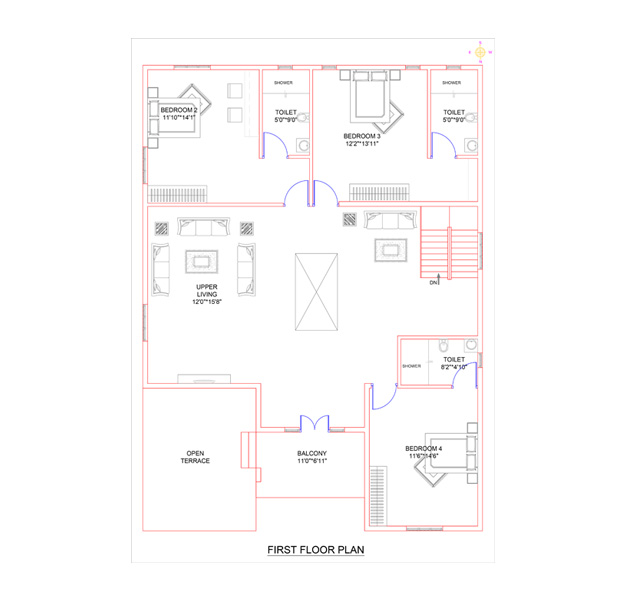

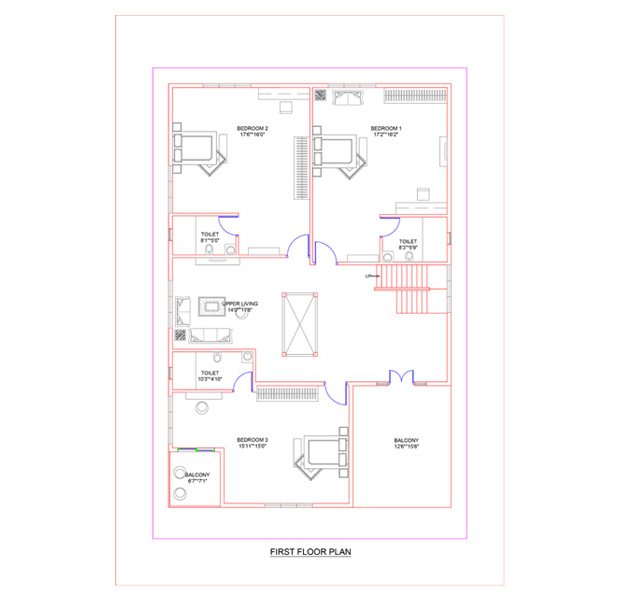

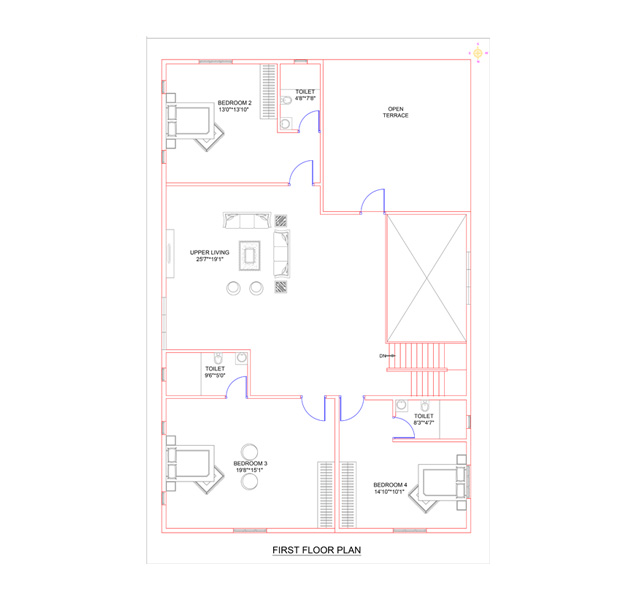

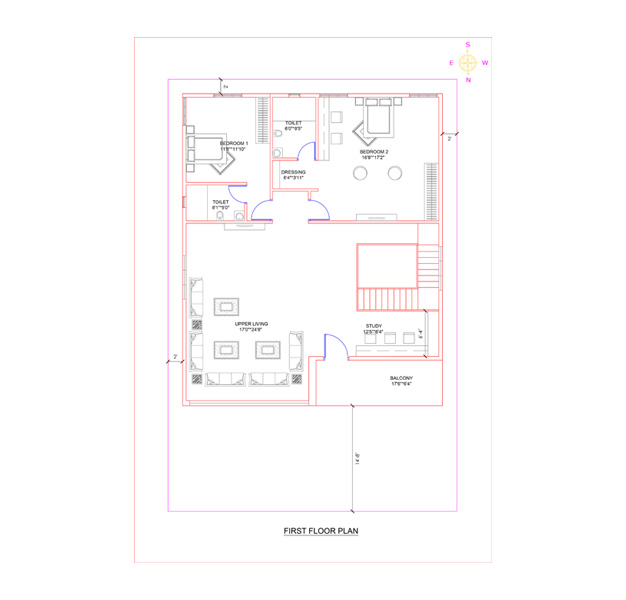

First Floor Plan
Ashia Estates
LUXURY BUILDINGS
Construction
LUXURY BUILDINGS
Construction
LUXURY BUILDINGS
Construction
LUXURY BUILDINGS
Construction
LUXURY BUILDINGS
Construction
LUXURY BUILDINGS
Construction
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Main Door | Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth ₹ 30,000. |
Teak Wood door with frame of 5inch by 3 inch,with Bronze Tower bolts, handles and lockalong. Door Thickness around 38mm worth ₹ 35,000 |
Teak Wood door with frame of 5inch by 3 inch,with Bronze Tower bolts, handles and lock . Door Thickness around 38mm along with Teak frame worth ₹ 40,000. |
| Puja / Prayer Room | Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth ₹ 25,000. |
Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth ₹ 25,000. |
Teak Wood door with frame of 5 inch X 3 inch and door of thickness around 38mm worth ₹ 25,000. |
| Other Doors | Membrane doors/ Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch | Membrane doors / Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch | Membrane doors / Flush Door with Laminates. Door Frames of Sal Wood 5 inch by 3 inch |
| Bathroom Doors | Waterproof flush doors | Waterproof flush doors | Waterproof flush doors |
| Windows | Aluminium / Neam wood Window frame with glass shutters ,mesh shutters and MS Grills with Enamel Paint | Red Sal/UPVC shutter windows with red Sal/ UPVC frames and MS Grills with Enamel Paint | Honne/UPVC shutter windows with Honne/ UPVC frames and MS Grills with Enamel Paint |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Interior Painting | JK Putty + Tractor Emulsion | JK Putty + Apcolite Premium Emulsion | Interior Painting- - JK Putty + Apcolite Premium Emulsion |
| Exterior Painting | Asian Primer + Ace Exterior Emuslion Paint | Asian Primer + Apex Exterior Emulsion Paint | Asian Primer + Apex Exterior Emulsion Paint |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Washrooms | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete | Fosrok chemical with plastering |
| Terrace | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete |
| 12mm jelly waterproof concreting with fosrok chemical |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Steel | Meenakshi Gold, Indus, Sunvik TMT Steel | Meenakshi Gold, Indus, Sunvik TMT Steel | JSW, TATA, Sunvik TMT Steel |
| Cement | ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC |
ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC |
ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC |
| Sand | M sand for Blockwork and Plastering | M sand for Blockwork and Plastering | M sand for Blockwork and Plastering |
| Blocks Exterior Walls | 6 inch | 6 inch | 6 inch |
| Blocks Interior Walls | 4 inch | 4 inch | 4 inch |
| Aggregates | 20mm & 40mm | 20mm & 40mm | 20mm & 40mm |
| RCC Design Mix | M25 | M25 | M25 |
| Ceiling Height | 10 feet | 10 feet | 10 feet |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | ||
| Washrooms | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete | Fosrok chemical with plastering | |
| Terrace | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete | Dr.Fixit mixed with Concrete | |
| 12mm jelly waterproof concreting with fosrok chemical |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Interior Painting: | JK Putty + Tractor Emulsion | JK Putty + Apcolite Premium Emulsion | Interior Painting- - JK Putty + Apcolite Premium Emulsion |
| Exterior Painting | Asian Primer + Ace Exterior Emuslion Paint | Asian Primer + Apex Exterior Emulsion Paint | Asian Primer + Apex Exterior Emulsion Paint |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| Wires | Concealed electric wiring with Fireproof wires by Finolex / Polycab | Concealed electric wiring with Fireproof wires by Finolex / Polycab | Concealed electric wiring with Fireproof wires by Finolex / Polycab |
| Switches & Sockets | Anchor/ Roma / GM/ Lisa | Anchor/ Roma / GM/ Lisa | Anchor/ Roma / GM/ Lisa |
| Conduits | ISI certified | ISI certified | ISI certified |
| Electrical points | As per clients specification will be provided in every room | As per clients specification will be provided in every room | As per clients specification will be provided in every room |
| ELCB | Legrad /ABB / Anchor | Legrad /ABB / Anchor | Legrad /ABB / Anchor |
Other Bathrooms
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Bathroom Ceramic Wall Tiles with 7 feet height - up to ₹40 per sq ft | Ceramic wall tiles up to ₹ 40/sq ft for floor and wall tiles. 2 vertical strips of highlighter tiles of length 2’-0” wide | Ceramic wall tiles up to ₹ 40/sq ft for floor and wall tiles. 2 vertical strips of highlighter tiles of length 2’-0” wide |
| Sanitary ware & CP Fittings from- up to ₹40000 till 1000 sq ft of construction and prorata after | Sanitary ware & CP Fittings - up to ₹50000 till 1000 sq ft of construction and prorata after. Company : Jaquar, Hindware, Parryware | Sanitary ware & CP Fittings - up to ₹50000 till 1000 sq ft of construction and prorata after. Company : Jaquar, Hindware, Parryware |
| ₹ 30,000/- allowance for bathroom fixtures | ₹ 30,000/- allowance for bathroom fixtures |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | |
| CPVC Pipe | Astral / Ashirwad | Astral / Ashirwad | Astral / Ashirwad |
| PVC Plumbing Pipes | Supreme | Supreme | Supreme |
| Stair case Railing | MS Railing | MS Railing | SS Railing |
| Balcony Railing | MS Railing | MS Railing | SS Railing with Glass |
| Parapet wall | 3 feet height | 3 feet height | 3 feet height |
| Underground Water Sump | 6000 liters | 7000 liters | 7000 liters |
| Over head Tank | Double Layered 1500 liters |
Double Layered 1500 liters |
Sintex Double Layered 1500 liters |
| Design & Drawings | 2D Floor Plan 3D Elevation Structural Design |
2D Floor Plan 3D Elevation Structural Design |
2D Floor Plan 3D Elevation Structural Design |
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft | ||
| Compound wall | Compound wall will be charged additional @ ₹ 650/ RFT based on foundation depth specifications | |||
| Additional Excavation | Excavation beyond the normal foundation depth of 6 ft will be charged extra when encountered with water/loose soil/stone | |||
| Rainwater Harvesting | Rainwater sump,Percolation pit, Fiter, Pipes , Fittings and instelation charges will be additional | |||
| Interior Designing | Interior design will be as per agreed upon sizes/ materials as mentioned in the contract | |||
| On Site | Landscaping, Planter box. | |||
| In Building | Glass doors and allied accessories (separating dry &wet area). | |||
| Bathtubs & extra fittings in bathroom, Wall cladding, Polycarbonate sheet/Toughen glass, Electrical fixtures & kitchen appliances, Home Automation, Home security systems | ||||
| &Others | Property Taxes, Building permission Approvals, Temporary Electrical Connection, Power and water charges, | |||
Balcony
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Flooring : Ceramic bathroor floor Tiles of ₹50 per sq ft. | Flooring : Ceramic bathroor floor Tiles of ₹60 per sq ft. | Flooring : Ceramic bathroor floor Tiles of ₹100 per sq ft. |
| MS Railing | MS Railing | SS Railing with Glass |
Terrace
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Parapet wall : 3 feet height. | Parapet wall : 3 feet height. | Parapet wall : 3 feet height. |
Water
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Sintex Double Layered 1500 lt₹. | Sintex Double Layered 1500 lt₹. | Sintex Double Layered 1500 lt₹. |
| Underground Sump - 6000 litres. | Underground Sump - 6000 litres. | Underground Sump - 7000 litres. |
Painting
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Interior Painting : JK Putty + Tractor Emulsion. | Interior Painting : JK Putty + Apcolite Premium Emulsion. | Interior Painting : JK Putty + Apcolite Premium Emulsion. |
| Exterior Painting : Asian Primer + Ace Exterior Emuslion Paint. | Exterior Painting : Asian Primer + Apex Exterior Emulsion Paint. | Exterior Painting : Asian Primer + Apex Exterior Emulsion Paint. |
Electrical
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab. | Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab. | Wires : Concealed electric wiring with Fireproof wires by Finolex / Polycab. |
| Switches & Sockets : Anchor Roma / GM. | Switches & Sockets :Switches & Sockets - Anchor Roma / GM. | Switches & Sockets :Switches & Sockets - Anchor Roma / GM. |
| ISI certified conduits. | ISI certified conduits. | ISI certified conduits. |
| Electrical points as per clients specification will be provided in every room. | Electrical points as per clients specification will be provided in every room. | Electrical points as per clients specification will be provided in every room. |
| ELCB to be provided in every floor. | ELCB to be provided in every floor. | ELCB to be provided in every floor. |
| Concealed electrical points for AC to be provided in every Bedroom. | Concealed electrical points for AC to be provided in every Bedroom. | Concealed electrical points for AC to be provided in every Bedroom. |
| Concealed electrical points for UPS to be provided. | Concealed electrical points for UPS to be provided. | Concealed electrical points for UPS to be provided. |
Plumbing
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| CPVC Pipe : Astral. | CPVC Pipe : Astral/Ashirwad. | CPVC Pipe : Astral/Ashirwad. |
| PVC Plumbing Pipes : Supreme. | PVC Plumbing Pipes : Supreme. | PVC Plumbing Pipes : Supreme. |
Design & Drawings
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| 2D Floor Plan. | 2D Floor Plan. | 2D Floor Plan. |
| 3D Elevation. | 3D Elevation. | 3D Elevation. |
| Structural Design. | Structural Design. | Structural Design. |
Structure
| ₹ 1,600 / sq ft | ₹ 1,700 / sq ft | ₹ 1,750 / sq ft |
| ISI Marked Fe 500 / 550 TMT Steel. | ISI Marked Fe 500 / 550 TMT Steel. | ISI Marked Fe 500 / 550 TMT Steel. |
| Aggregates : 20mm & 40mm. | Aggregates : 20mm & 40mm | Aggregates : 20mm & 40mm |
| Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls. | Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls. | Blocks : Standard Solid Concrete blocks. 6 inch for Exterior Walls & 4 inch for Interior Walls. |
| Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC. | Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC. | Cement : ACC, Birla, Ultratech, Ramco OPC of Grade - 43/53 Or PPC. |
| M sand for Blockwork and Plastering. | M sand for Blockwork and Plastering. | M sand for Blockwork and Plastering. |
| RCC Design Mix - M25. | RCC Design Mix - M25. | RCC Design Mix - M25. |
| WaterproofingAll terrace and all washrooms Dr.Fixit. | WaterproofingAll terrace and all washrooms Dr.Fixit. | WaterproofingAll terrace and all washrooms Dr.Fixit. |
| Ceiling Height - 10 feet clear height. | Ceiling Height - 10 feet clear height. | Ceiling Height - 10 feet clear height. |
| Washrooms : Fosrok chemical with plastering. | Washrooms : Fosrok chemical with plastering. | |
| Terrace : 12mm jelly waterproof concreting with fosrok chemical. | Terrace : 12mm jelly waterproof concreting with fosrok chemical. |
